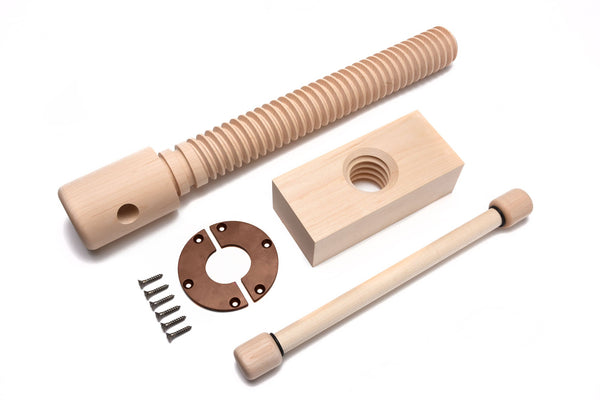

Complete wooden vise kit: maple screw, nut, handle and brass garter

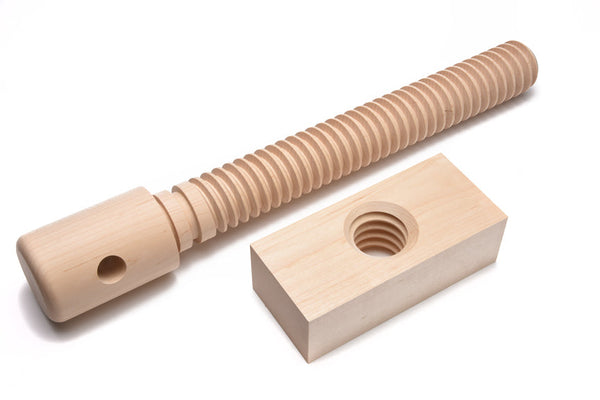

Screw & nut kit

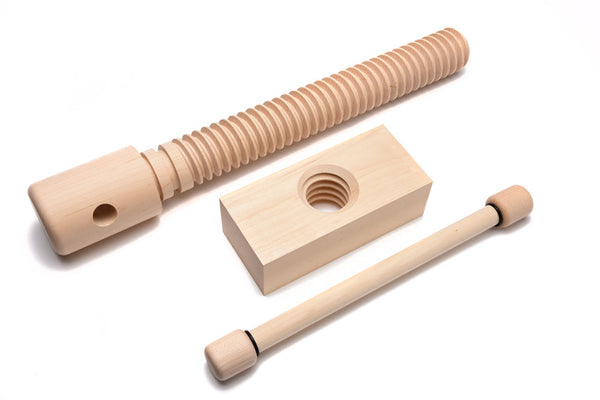

Screw, nut & handle kit

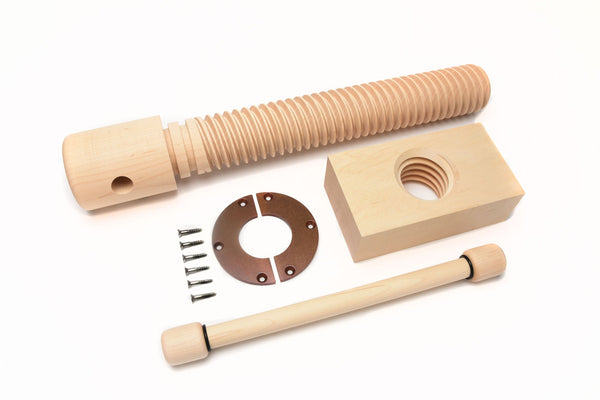

2X complete wooden vise kit

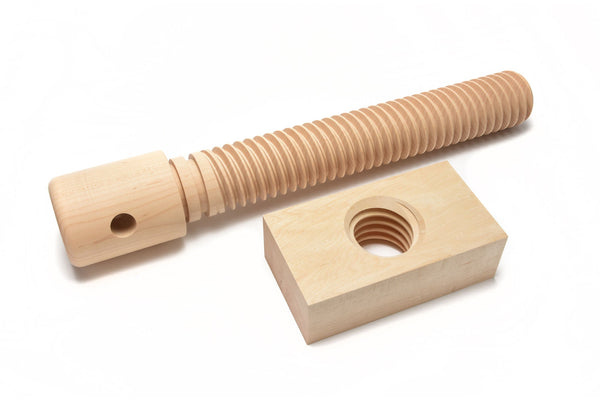

2X screw & nut kit

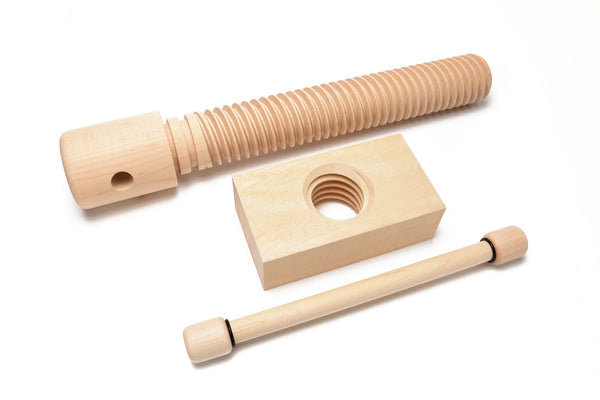

2X screw, nut & handle kit

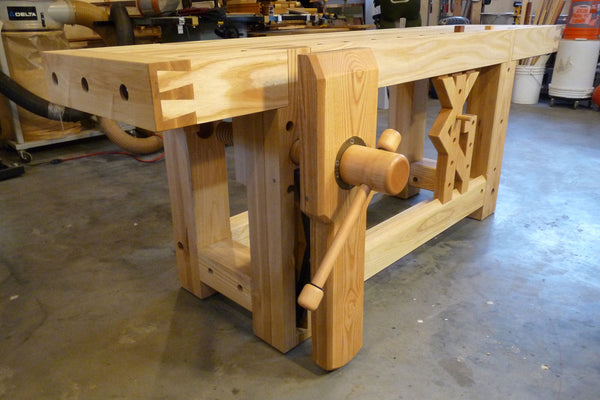

Wooden leg vise installed on a workbench

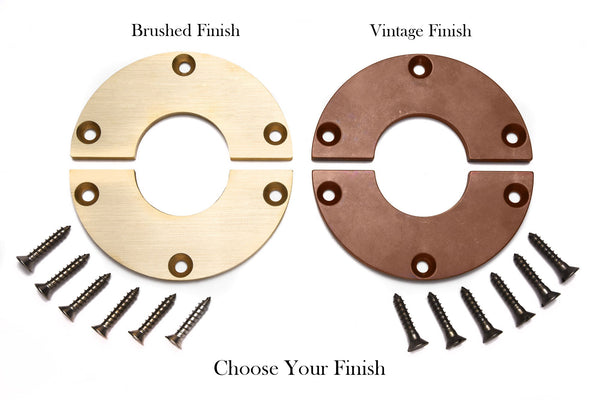

Brass garter sets, vintage and brushed finish

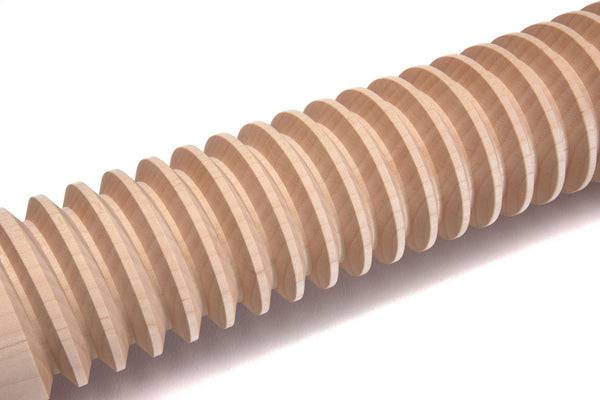

Hard maple vise screw thread detail

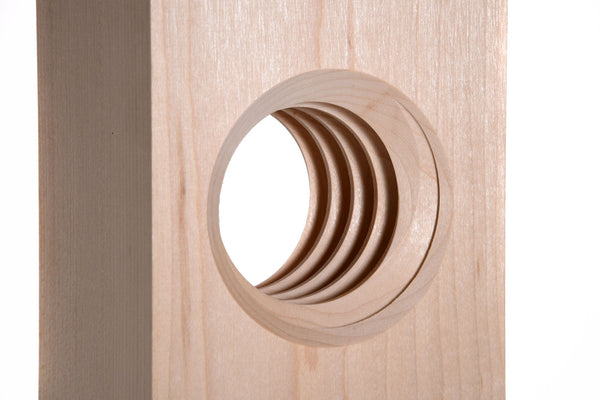

Hard maple nut thread detail

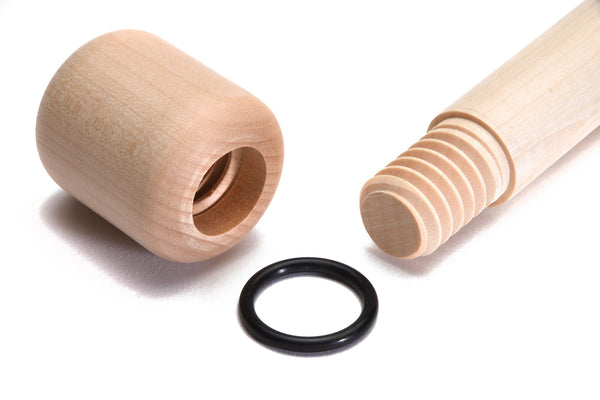

Handle threaded end knob detail

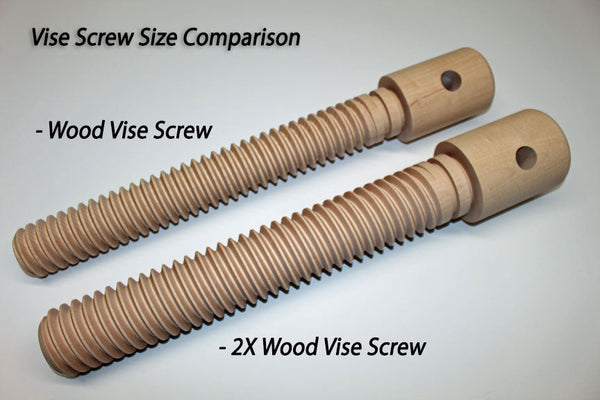

Standard and 2X screw size comparison

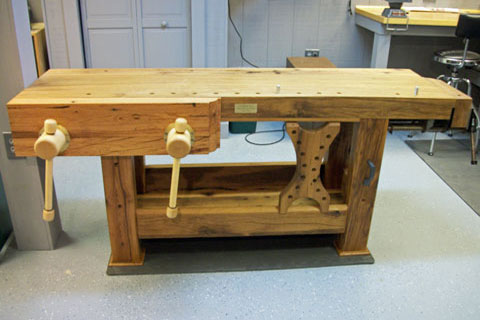

Twin screw vise built with two wooden vise kits

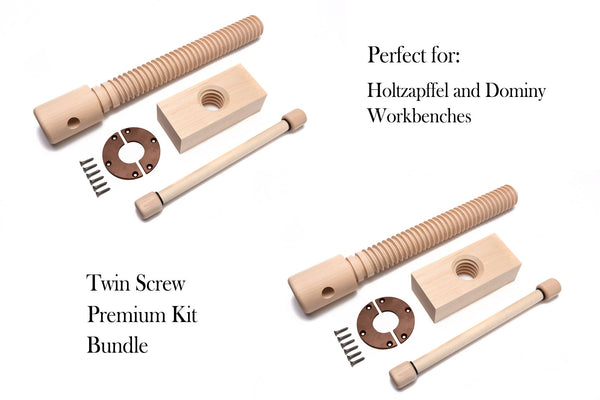

Two complete wooden vise kits for a twin screw vise
Load image into Gallery viewer, Complete wooden vise kit: maple screw, nut, handle and brass garter
Load image into Gallery viewer, Screw & nut kit
Load image into Gallery viewer, Screw, nut & handle kit
Load image into Gallery viewer, 2X complete wooden vise kit
Load image into Gallery viewer, 2X screw & nut kit
Load image into Gallery viewer, 2X screw, nut & handle kit
Load image into Gallery viewer, Wooden leg vise installed on a workbench
Load image into Gallery viewer, Brass garter sets, vintage and brushed finish
Load image into Gallery viewer, Hard maple vise screw thread detail
Load image into Gallery viewer, Hard maple nut thread detail
Load image into Gallery viewer, Handle threaded end knob detail
Load image into Gallery viewer, Standard and 2X screw size comparison
Load image into Gallery viewer, Twin screw vise built with two wooden vise kits
Load image into Gallery viewer, Two complete wooden vise kits for a twin screw vise

Wooden Vise Kit (Leg, Face, Tail & Twin Screw Vises)

A hard maple vise screw and nut for a leg vise, face vise or tail vise.

Every screw is milled from a solid billet of hard maple, no glue joints.

Outfitting your whole bench? Order two or more vise kits (leg, wagon or shoulder) and bench builder pricing applies automatically in your cart.

Pick a size

  • Standard screw: 2-1/2" diameter threads, 2 turns per inch (two turns of the handle moves the jaw 1"). About 23-24" long overall with a 3-1/2" x 4-3/4" hub and 19-1/4" of thread. Nut is 2-3/4" x 4" x 8-9".
  • 2X screw: 3" diameter double-start threads, 1 turn per inch, so it moves twice as fast. About 23-24" long with a 4" x 4-3/4" hub and 19" of thread. Nut is 2-3/4" x 5" x 8-9". (2X is the size name; it's still one vise.)

Pick a kit

  • Screw & nut: the screw and a matching threaded nut. Bring your own handle and garter.
  • Screw, nut & handle: adds the maple handle.
  • Complete: adds a brass garter set too, in Vintage or Brushed finish.

Building a twin screw vise?

Order two kits (set the quantity to 2) and bench builder pricing applies automatically in your cart. Most twin screw builds use the complete kit.

Which garter?

  • Brass external garter (in the complete kit): easiest to install and strong enough for spreading loads, like using a tail vise to knock furniture apart. Best for leg, face and tail vises.
  • Maple internal garter (2X size): sits in a mortise in the chop and lifts out, so a twin screw chop can rack for angled work. Don't glue it in, and keep spreading force light.
  • No garter: also works on a twin screw vise (Dominy and Holtzapffel benches are built this way). You pull the chop out by hand after winding the screws back.

What's what

  • Handle: hard maple, 1" x 16-3/4", with threaded end-grain knobs on both ends and O-rings.
  • Brass garter set: holds the screw hub to the chop so the jaw moves in and out with the screw. Comes with screws, in Vintage (aged) or Brushed finish.

Finishing

Arrives sanded to 220 grit. Use a penetrating oil and skip film finishes like lacquer, shellac or water-based poly. Then wax the screw and nut threads with a silicone-free paste wax so it runs smooth. An old toothbrush helps get wax into the nut.

Installation: Leg vise instructions (PDF) · Twin screw instructions (PDF) · All instructions

Regular price $ 225.00
