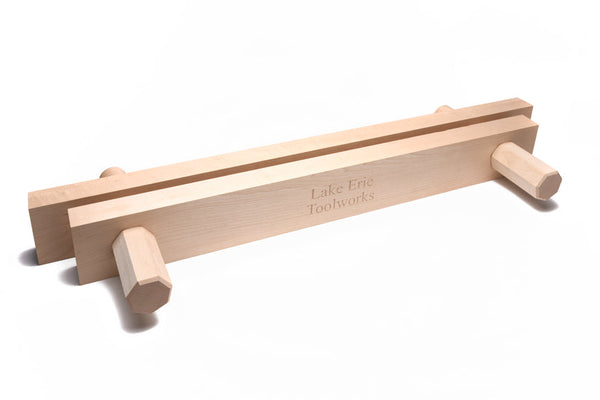

Lake Erie Toolworks hard maple Moxon vise, standard size

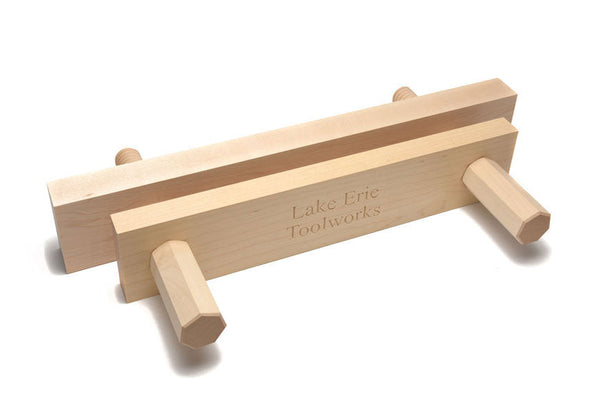

Moxon Vise Lite, hard maple

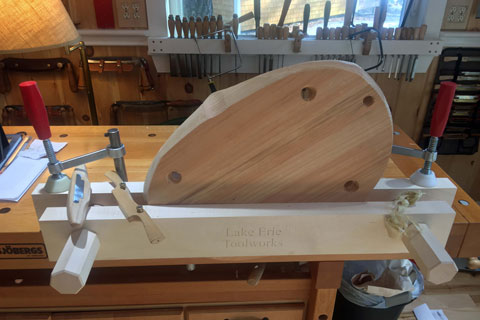

Moxon vise clamped to a workbench

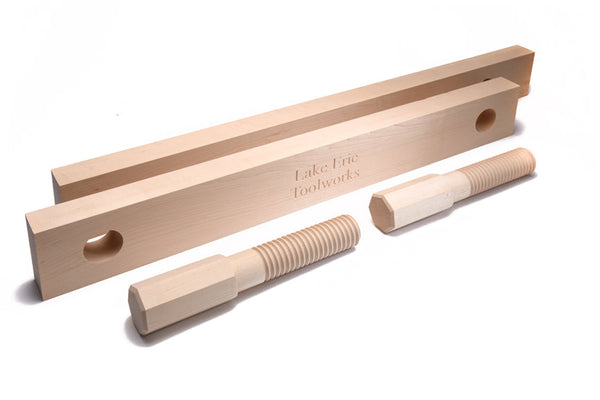

Standard Moxon vise parts

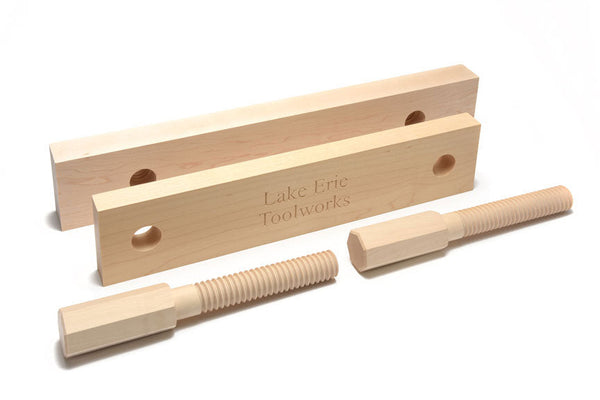

Moxon Vise Lite parts

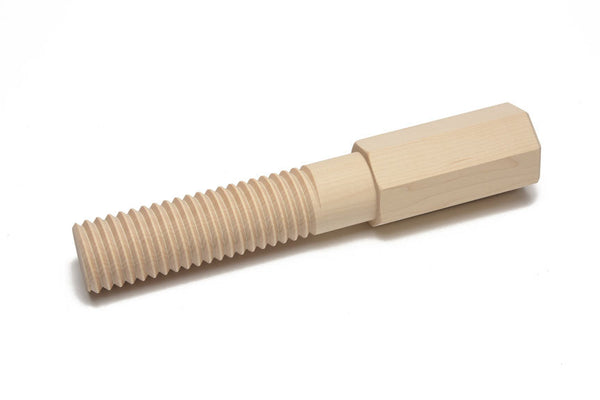

Standard Moxon vise screw

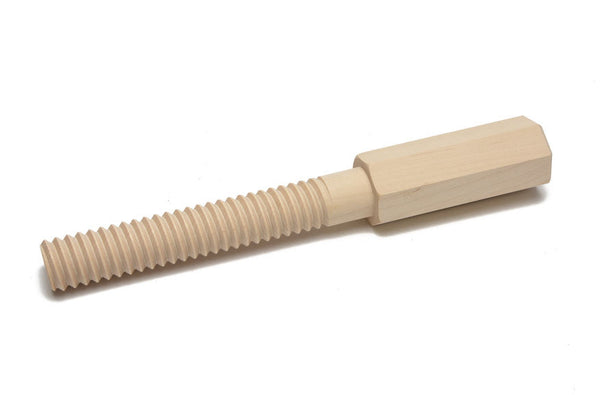

Moxon Vise Lite screw

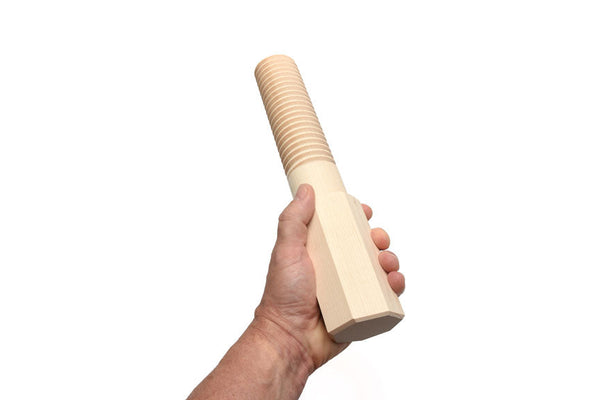

Standard Moxon screw with scale

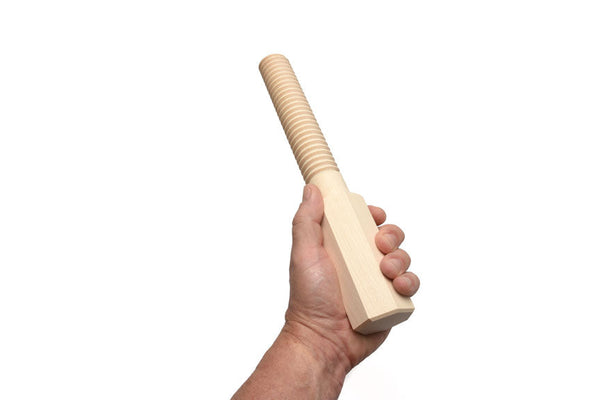

Moxon Vise Lite screw with scale
Load image into Gallery viewer, Lake Erie Toolworks hard maple Moxon vise, standard size
Load image into Gallery viewer, Moxon Vise Lite, hard maple
Load image into Gallery viewer, Moxon vise clamped to a workbench
Load image into Gallery viewer, Standard Moxon vise parts
Load image into Gallery viewer, Moxon Vise Lite parts
Load image into Gallery viewer, Standard Moxon vise screw
Load image into Gallery viewer, Moxon Vise Lite screw
Load image into Gallery viewer, Standard Moxon screw with scale
Load image into Gallery viewer, Moxon Vise Lite screw with scale

Moxon Vise

A hard maple Moxon vise for dovetails, tenons and other joinery. It clamps to the front of your bench and brings the work up to a comfortable sawing height, held tight along its whole width. No bench yet? Clamp it to a kitchen or picnic table.

Solid hard maple, ready for your finish.

Building out your bench? Add a leg, wagon or shoulder vise kit and bench builder pricing applies automatically in your cart.

Pick a size

  • Standard: holds boards up to 24" wide between the screws. Front jaw 1-3/4" x 4" x 32", rear jaw 1-3/4" x 3-7/8" x 36". Screws are 1-3/4" diameter, 3-1/2 threads per inch, with 2-3/8" grips. About 16 lb.
  • Lite: holds boards up to 14" wide, sized for drawer dovetails. Front jaw 1-1/4" x 4" x 19-3/4", rear jaw 1-3/4" x 3-7/8" x 23-3/4". Screws are 1-1/4" diameter, 4 threads per inch, with 1-7/8" grips. About 7-1/2 lb, easy to carry and store.

Both open to 4-1/4" between the jaws.

What's included

Two maple screws, a front jaw and a threaded rear jaw. The front jaw has a 1/8" lip that registers against the front of your bench, and oblong screw holes so you can clamp tapered work. The jaws are milled on all four sides, ready to sand or plane.

Finishing

Use a penetrating oil and skip film finishes like lacquer, shellac or water-based poly. Then wax the screw threads with a silicone-free paste wax so they spin freely. Some folks line the rear jaw with thin cork or leather for extra grip.

Instructions: Standard (PDF) · Lite (PDF) · Video: using the Moxon vise

Regular price $ 240.00
